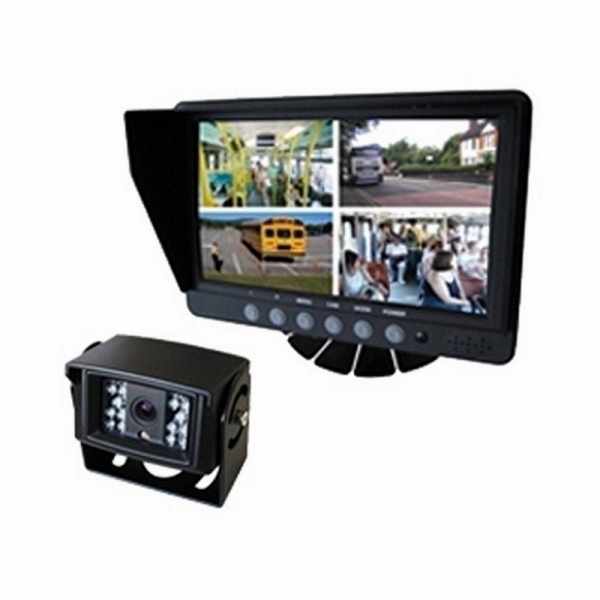

Reversing Camera Kit w/ 7" Quad Split Monitor
LA-TQS701B
Hazard & Emergency / Reversing Camera Systems / Complete Kits
Reversing Camera Kit w/ 7" Quad Split Monitor
ID: LA-TQS701B
price INC VAT: £359.28
price EX VAT: £299.40
7" Quad Split Rear Camera Kit 12-24V
- Built-in quad control box function
- Rear view monitor support four camera inputs
- With remote controller
- Single View/Split view/Quad view selectable
- 7 languages OSD display
- PAL/NTSC optional, MIRROR/NORMAL image optional
- Automatically turn on when the reversing gear is engaged
- Trigger priority: CAM 1>CAM 2>CAM 3>CAM 4
- With high-low voltage protection and short circuit protection
- IR rearview camera
- DC 12-24V for heavy duty
Monitor Specifications:
- 7 inch TFT LCD monitor ,16:9
- Wide view angle(CR>10): (up/down/left/right): 40/40/60/60
- Resolution:400 R.G.B x234 dots
- Color system: PAL/NTSC(selectable)
- Power requirement: 12/24V DC
- Power consumption: 5W
- Dimension: 183 (L) x 125 (W) x 38 (D)
Camera Specification:
- Type High resolution backup camera
- Image Sensor 1/3" CCD
- TV System NTSC/PAL Optional
- Horizontal Resolution 420 TV Line
- Lens Angle 120¡ã
- Minimum Illumination 0Lux (LED ON)
- IR Led 10pcs
- Night Vision distance 45ft
- Operating Temperature -20¡æ~+70¡æ RH95% Max
- Lens f=2.5mm/1.7mm
- Power Supply DC12V
- Size 70 (L) 50 (w) 40 (H) mm
- Waterproof Rate IP67
- Shell Material Aluminium alloy
